LAN-CAT6-IS (Isolation type)

Conforming standards

  • RoHS compliant

Features

  • User isolation type circuits
  • 10 Gbase-T enabled (up to cat.6)
  • Earth-free type not requiring earthing or protecting equipment without earthing cinnections
  • Impluse withstand voltage 5kV or more
  • DIN rail mountable (35mm)

Application

  • Gigabit Ethernet
  • Network cameras
  • Ordinary households (PCs, network devices)
  • Outdoor installed network devices

Characteristics

Item Performance
Applicable lines IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3an* 10GBASE-T
Transmission loss 2dB or less (each line)

AC withstand voltage

(1 minute, Cutoff current 1 mA)

 2.0kV or more (between primary and secondary line)
Impluse withstand voltage 1.2/50µs 5.0kV or more (between primary and secondary line)

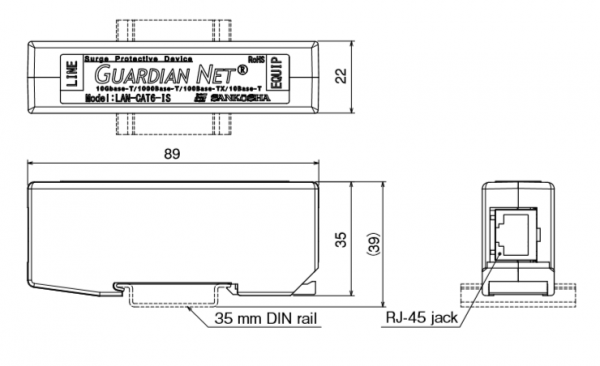

External View
