SPD for co-axial connectors

SPD (Surge Protective Device) is a product that protects electrical facilities and equipment from abnormal voltage generated by lightning. In order to protect various devices from lightning damage, we have a wide variety.

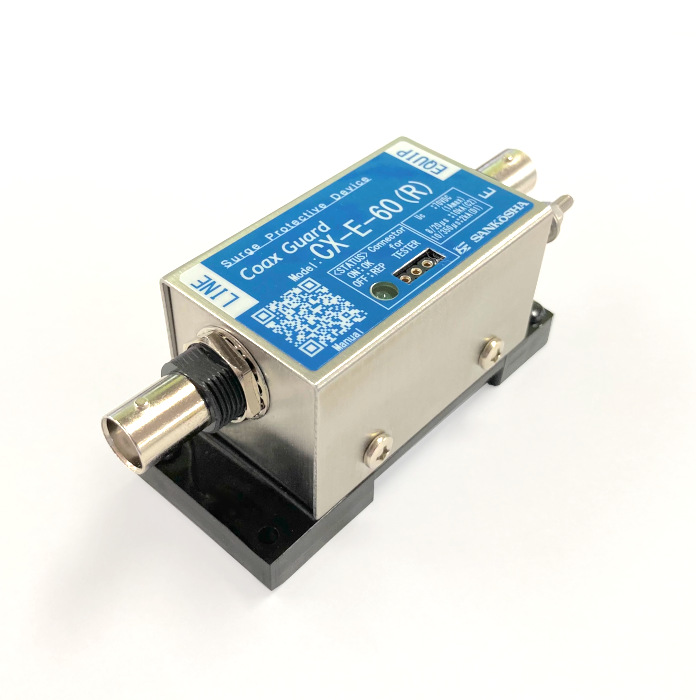

CX-E-60
01.Lightning Protection Products - SPD for co-axial connectors

For surveillance camera (analog) / coaxial-LAN converter protection

- NTSC compatible

- AHD compatible

- HD-TVI compatible

Category C2 / Category D1 compatible

Connector : BNC

impedance : 50Ω / 75Ω

compatible Frequency : DC to 50MHz

CX-E-ECS
01.Lightning Protection Products - SPD for co-axial connectors

For protection of surveillance cameras (analog type)

Compatible with Category C2 and Category D1

Connector : BNC

impedance : 50Ω / 75Ω

Compatible frequency : DC to 30MHz

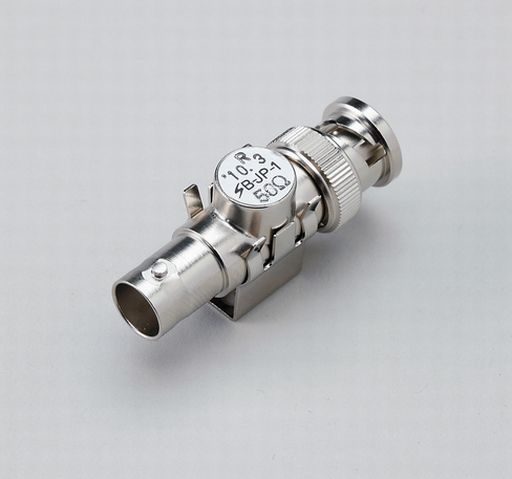

For protection of wireless communication devices

Connector : BNC

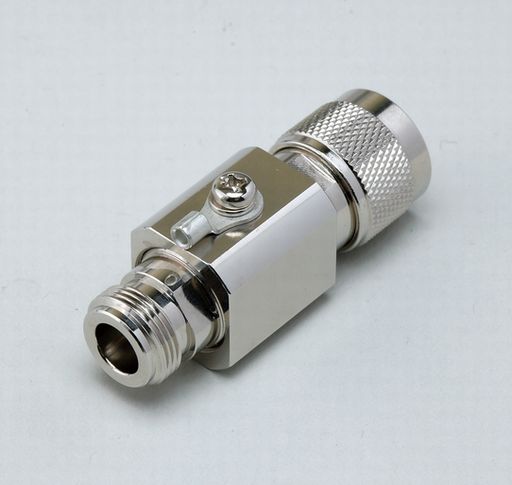

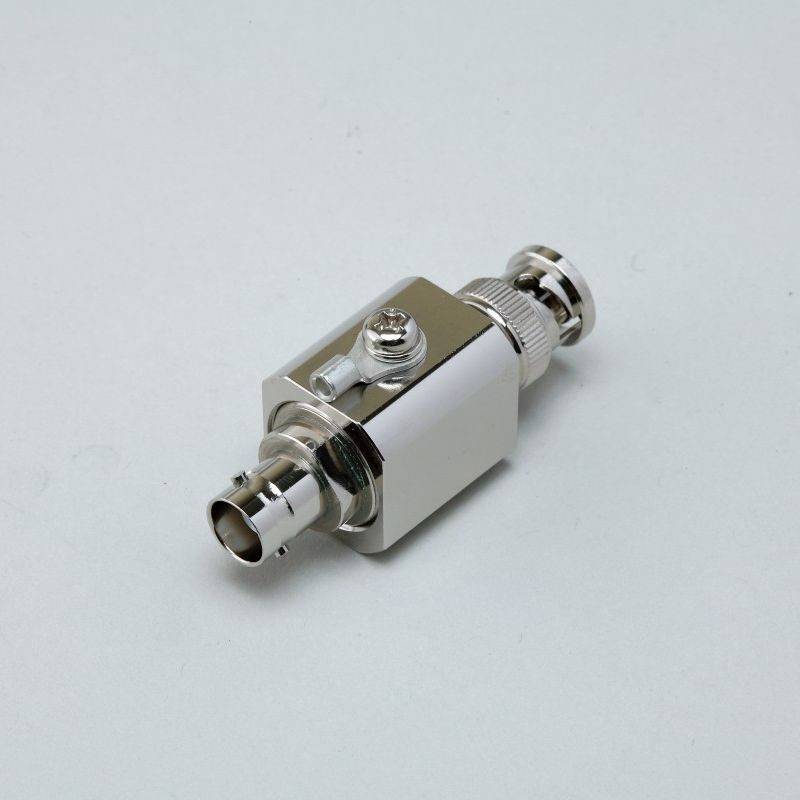

B-JP-7, B-JP-8
01.Lightning Protection Products - SPD for co-axial connectors

BNC type connector surge protection device for wireless equipment

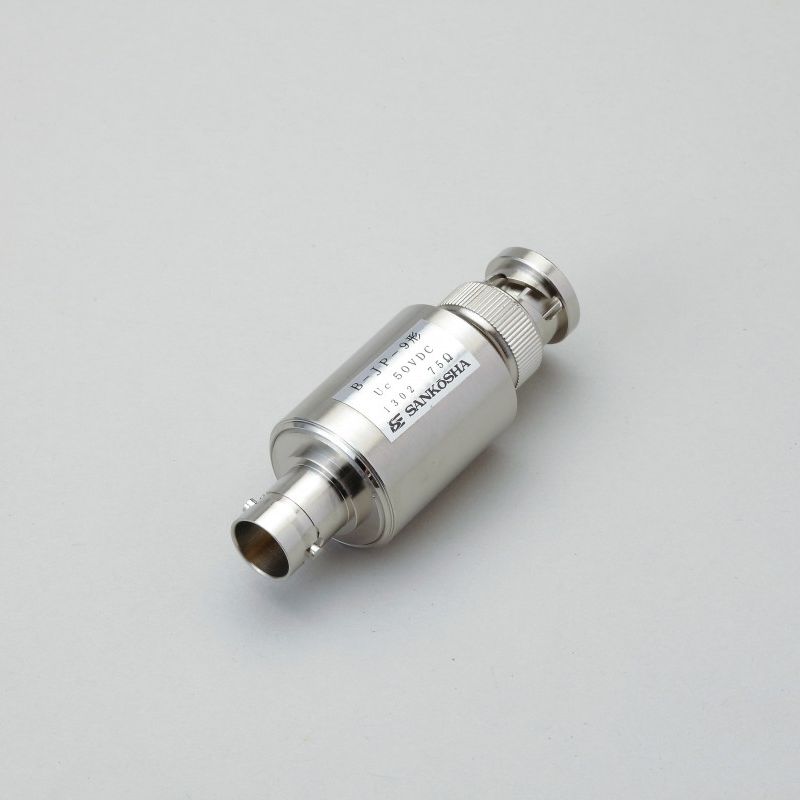

B-JP-9
01.Lightning Protection Products - SPD for co-axial connectors

For protection of surveillance cameras (digital type)

- EX-SDI compatible

- HD-SDI compatible

Category C2 / Category D1 compatible

Connector : BNC

impedance : 75Ω

Compatible frequency : DC to 3GHz

N type connector surge protective device of wireless communication equipment

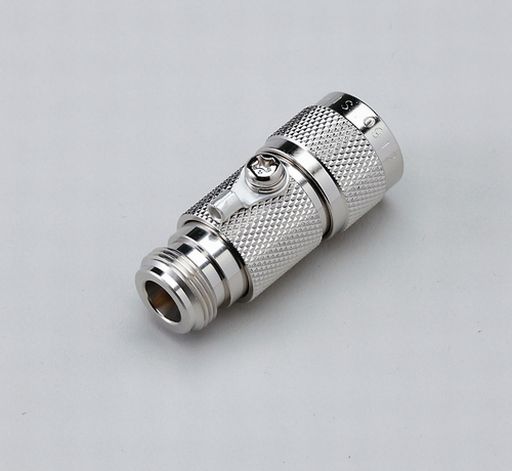

N-JP-1S
01.Lightning Protection Products - SPD for co-axial connectors

For protection of wireless communication devices and GPS antennas

Category C2 / Category D1 compatible

Connector : N

impedamce : 50Ω

Compatible frequency : DC to 3GHz

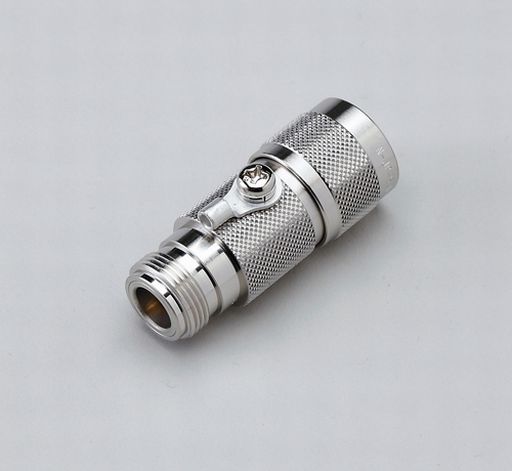

For protection of wireless communication devices

Compatible with Category C2 and Category D1

Allowable power : 60W

Connector : N

impedance : 50Ω

Compatible frequency : DC to 3GHz

N-JP-6
01.Lightning Protection Products - SPD for co-axial connectors

For protection of 5GHz band wireless communication devices

Connector : N

impedance : 50Ω

Compatible frequency : 4.7GHz to 5.7GHz

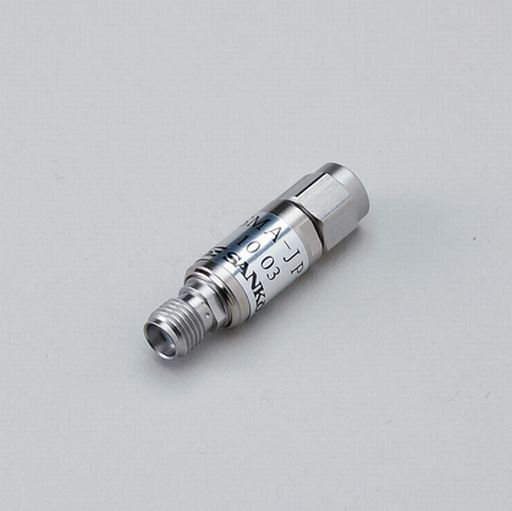

SMA-JP-1
01.Lightning Protection Products - SPD for co-axial connectors

For protection of wireless communication devices

Compatible with Category C2 and Category D1

Connector : SMA

impedance : 50Ω

Compatible frequency : DC to 3GHz

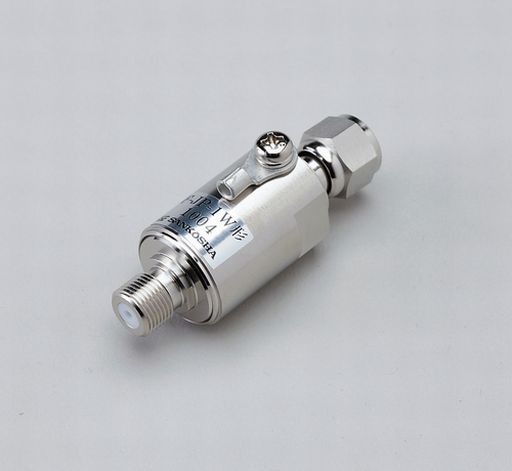

F-JP-1W
01.Lightning Protection Products - SPD for co-axial connectors

For protection of 4K, 8K, TV, BS, CS

Category C2 and Category D1 Compatible

Power : 50W

Connector : F

Impedance : 75Ω

Compatible Frequency : DC to 3.3GHz

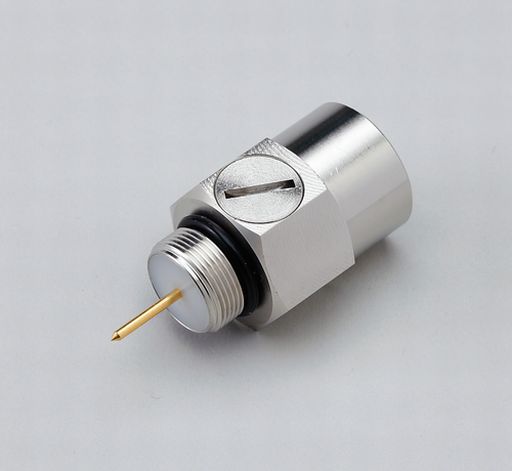

FT-ARR (60)
01.Lightning Protection Products - SPD for co-axial connectors

For protection of CATV

Connector : FT

impedance : 75Ω

Compatible frequency : DC to 1GHz

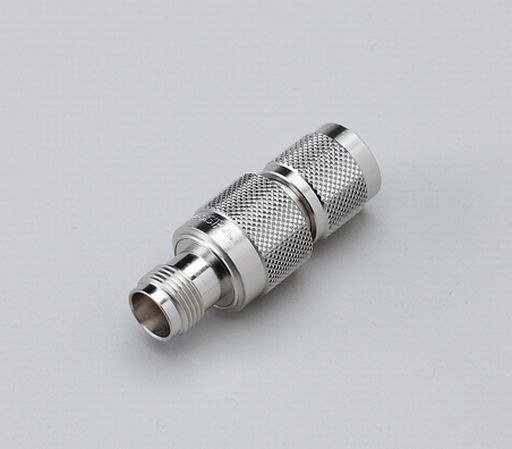

TNC-JP-2
01.Lightning Protection Products - SPD for co-axial connectors

For protection of wireless communication devices

Compatible with Category C2 and Category D1

connector : TNC

impedance : 50Ω

Compatible frequency : DC to 3GHz

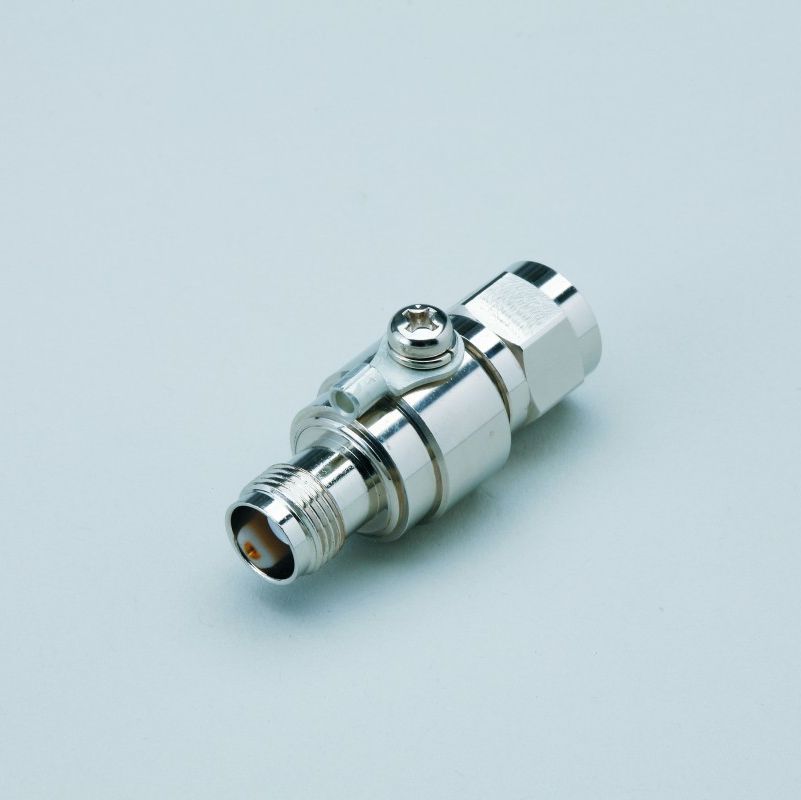

TNC-JP-3
01.Lightning Protection Products - SPD for co-axial connectors

For protection of wireless communication devices

Compatible with Category C2 and Category D1 Compatible with

torque management

connector : TNC

impedance : 50Ω

Compatible frequency : DC to 3GHz

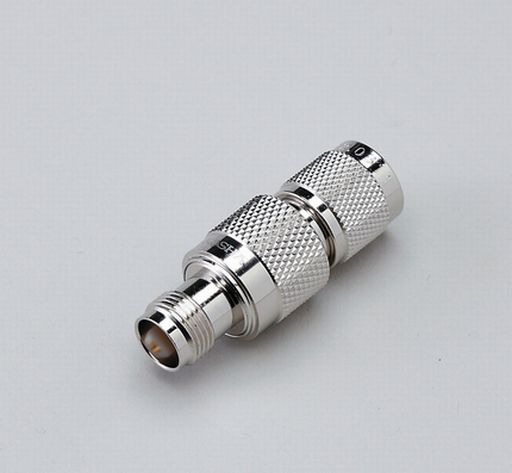

TNC-JP-5
01.Lightning Protection Products - SPD for co-axial connectors

For protection of wireless communication devices

Allowable power : 60W

connector : TNC

impedance : 50Ω

Compatible frequency : DC to 3GHz

GPSP1-L1-TNCJJ
01.Lightning Protection Products - SPD for co-axial connectors

GPS antenna port protection

TNC Connector

Category C2

Compatible frequency 1575.42 ± 5 MHz

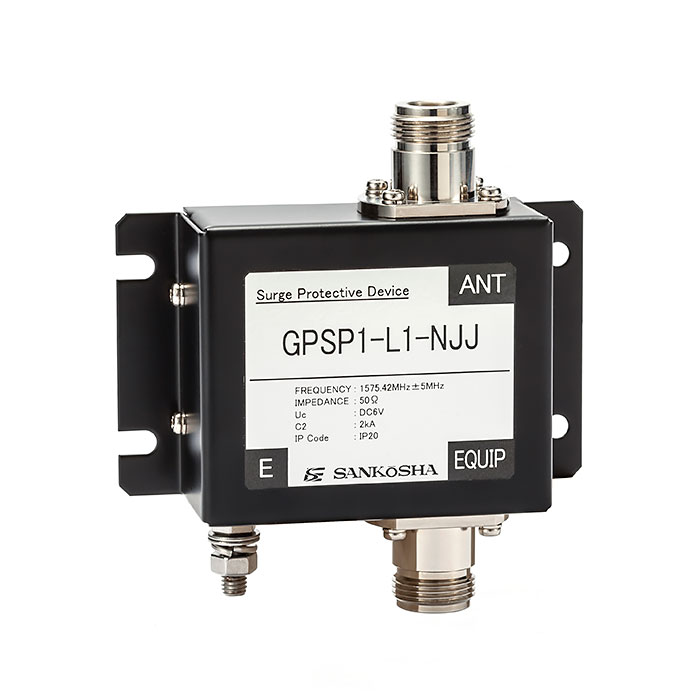

GPSP1-L1-NJJ
01.Lightning Protection Products - SPD for co-axial connectors

GPS antenna port protection

N-Type Connector

Category C2

Compatible frequency 1575.42 ± 5 MHz
